LED high bay light

  • led high bay light(PL-UFO-026)
  • led high bay light(PL-UFO-026)
  • led high bay light(PL-UFO-026)

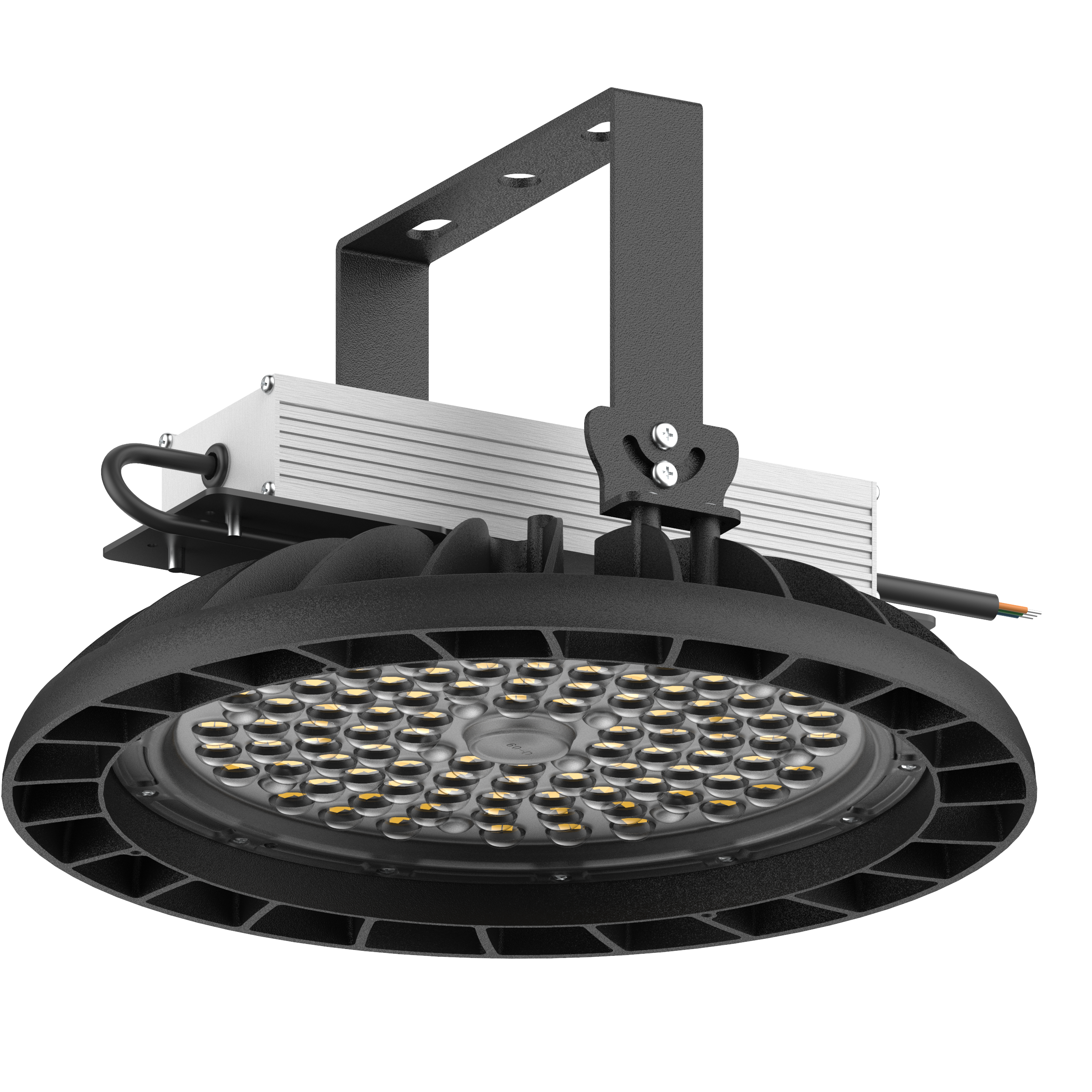

led high bay light(PL-UFO-026)led high bay light(PL-UFO-026)led high bay light(PL-UFO-026)

led high bay light(PL-UFO-026)

  • ufo high bay light
  • led ufo high bay light
  • ufo high bay lamp
  • led ufo high bay lamp
  • Product description: High Quality SMD3030 Meanwell Power Supply 140lm/W UFO LED Highbay Light with Ce CB SAA Approved
  • INQUIRY

factory price warehouse lighting 5 years warranty 100w 150w 200W 240W ufo led high bay light


LED highbay lighting of its own characteristics
LED highbay light is to use white LED as a light source, the shell is made of aluminum alloy, with a high-efficiency lens cover, LED highbay light power is only 20% of the sodium, the traditional highbay light 250W and 400W sodium lamps, now uses only 100W of LED highbay light can achieve the same effect, energy saving effect is very obvious, the other due to the traditional highbay light heat large, so often cause damage due to overheating lamps, LED highbay light adopt finned radiator cooling natural air circulation makes more perfect, were circulated outside, effectively guarantee the LED highbay light will not overheat and damage.

Advantages of LED highbay lighting
LED highbay light uses single high power LED as the light source, using a unique multi-chip integrated single source design, selection of imported high brightness semiconductor chips with high thermal conductivity, low luminous decay, pure light color, no ghosting.
2, shell table surface anodic oxidation processing, compact appearance.
3, green pollution-free, lead, mercury and other pollution elements, no environmental pollution.
4, LED mining light color is good, the color rendering of the kind more real, and a variety of light and color options to meet the needs of different environments, eliminating the traditional lamp color temperature depression caused by low mood or, so that the visual comfort, improve people's working efficiency.
5, using the constant current control, the use of wide voltage to overcome the power generated due to the rectifier, noise pollution and instability caused by lighting, to avoid the work to bring the eye irritation and fatigue.
6, simple installation, easy disassembly, using a wide range.
7, high luminous efficiency, more energy, the equivalent of 100W of LED highbay light can replace traditional 250W and 400W sodium lamps.
8, traditional light fixtures have high shortcomings temperature, lighting temperature can reach 200 to 300 degrees. The LED itself is a cold light, lamp temperature is low, more secure.

Product specs

Model PL-UFO-026-100W PL-UFO-026-150W PL-UFO-026-200W PL-UFO-026-240W
Power 100W 150W 200W 240W
Dimension Φ260X170mm Φ306X173mm Φ345X180mm Φ345X180mm
Luminous Flux 150lm/w±5%
LED Source 196PCS Lumileds 2835 294PCS Lumileds 2835 392PCS Lumileds 2835 420PCS Lumileds 2835
Input Voltage AC200~240V
Frequency Range 50~60Hz
Total Harmonic Distortion <20%  (Typical : 10%)
Color Temperature 2700-6500K
Color Rendering Index CRI>70/80
IP Rating IP65
Beam Angle 60°/90°/120°
Optical Transmittance >97%
Housing Color Black
Working Life >50,000 hours
Warranty 3 years
Working Environment -30ºC~+50ºC, 10%~90% RH
Control Microwave sensor/1-10V/Zigbee system
Body & Shade Material Die-casting Aluminum housing & Annular lens or Glass
Where Can Use Warehouse; industrial production workshop; pavilion; stadium; the train station; shopping malls; gas stations and other indoor lighting

FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
