High Brightness Football Stadium Hig Mast Lighting Outdoor 400W-2000W Tennis LED Flood Light

Advantages of LED stadium sports light

• The best adjustable flood light for project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.
• The constant current driver, very good on anti-surge, stable performance, 5 years warranty.
• Use the new generation lumileds smd as Light Source, with the features of high brightness, low light decay, long lifespan.
• Provide a variety of beam angle options for different application scenarios.
• All sets of IES files support, Dialux program support.
• Waterproof IP66, outdoor use freely.
• Anti-glare cover and explosion-proof net can be added.

Application
Applicable for Building external wall,square,garden,warehouse,tunnel,etc. Below are some cases.

Data sheet:

Model	PL-SD-057
Power	400-480W	600-720W	800-1000W	1000-1200W	1500W	2000W

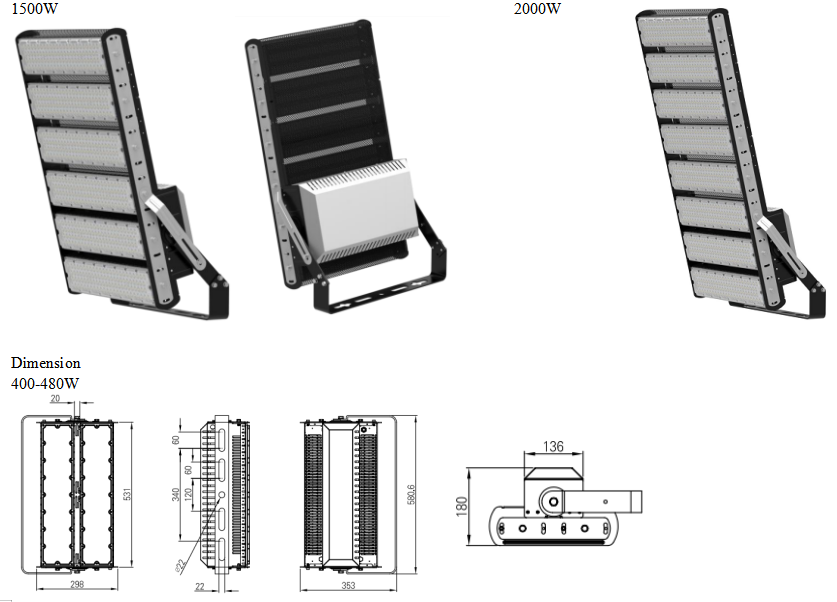

Dimension	580.6X353X180mm	590.6X548.8X195mm	692.8X590.6X195mm	836.8X590.6X195mm	980.8X590.6X195mm	1265X590X195mm
Luminous Flux	150-160 lm/w
LED Source	192PCS SMD 5050	288PCS SMD 5050	384PCS SMD 5050	480PCS SMD 5050	576PCS SMD 5050	768PCS SMD 5050
Input Voltage	AC100~277V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20%  (Typical : 10%)
Color Temperature	2700-6500K
Color Rendering Index	CRI>70
IP/IK Rating	IP65/IK08
Beam Angle	20°/40°/60°/90°/P50°
Housing Color	Black
Working Life	>50,000 hours
Warranty	5 years
Working Environment	-30ºC~+50ºC, 10%~90% RH
Body & Shade Material	Aluminum housing & Annular lens
Where Can Use	Applicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.

Packaging:

Item Model	Carton Size (mm)	G.W(KG)	QTY.(PCS)
PL-SD-060-500W	545X345X315	10.50	1
PL-SD-060-1000W	690X630X375	22.50	1
PL-SD-060-1500W	990X630X375	35.00	1
PL-SD-060-2000W	1290X630X375	45.00	1
