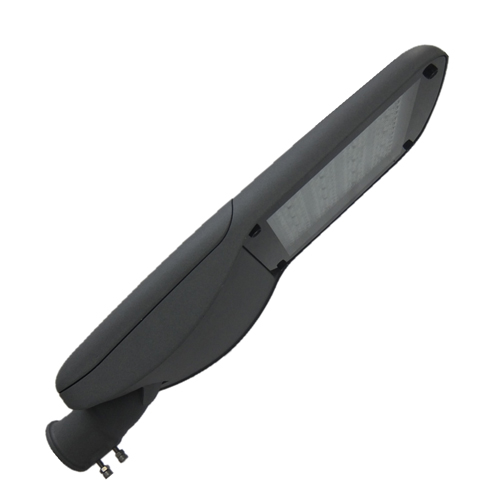

led street light(PL-LD-127)

Outdoor Adjustable LED road Light with ENEC CB SAA Ce& RoHS Approva

Advantages of LED road street light

• The best adjustable street light for road lighting, yard field,garden, warehouse, display rack, tunnel, football field etc.
• The constant current driver, very good on anti-surge, stable performance, 5 years warranty.
• Use the new generation lumileds smd as Light Source, with the features of high brightness, low light decay, long lifespan.
• Provide a variety of beam angle options for different application scenarios.
• All sets of IES files support, Dialux program support.
• Waterproof IP66, outdoor use freely.
• Anti-glare cover and explosion-proof net can be added.

Application

Applicable for Building external wall,square,garden,warehouse,tunnel,etc. Below are some cases.

Data sheet

Model	PL-LD-127
Power	50W	80-100W	120-150W	200W
Dimension	450X145X100mm	553X167X100mm	618X200X100mm	687X235X100mm
Luminous Flux	110-120lm/w
LED Source	70PCS SMD 3030	120PCS SMD 3030	180PCS SMD 3030	240PCS SMD 3030
Input Voltage	AC100-277V
Body & Shade Material	Die-casting Aluminum housing & lens
Frequency Range	50~60Hz
Total Harmonic Distortion	<20% (Typical : 10%)
Fitting hole	60mm
CCT	1800k (Amber) 3000k 4000k 5000k 5700k 6500k
Color Rendering Index	CRI>70 (80 upon request)
Power Factor	>0.9
Waterproof and IK	IP65 IK08
Beam Angle	70X135°
Housing Color	Gray
Working Life	>50,000 hours
Surge protection device	4-6KV/10KV/20KV
Work temperature	-40ºC~50ºC 20%~90% H.R
Storage temperature	-40ºC~85ºC 10%~90% H.R
Dimming	Photocell/ DALI / 1-10V / PWM / FIVE LEVELS DIMMING
Warranty	2-3 years
