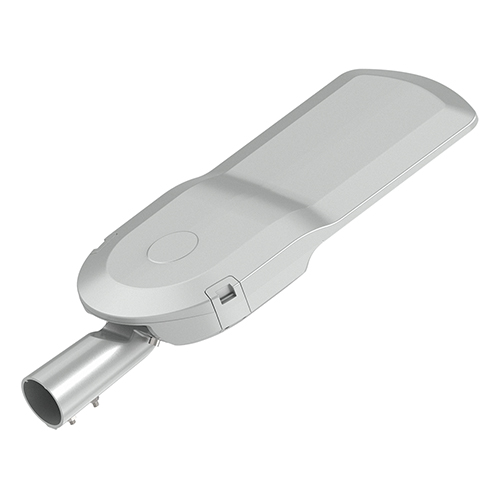

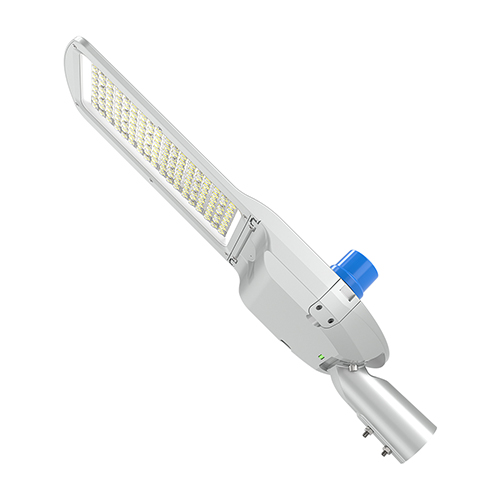

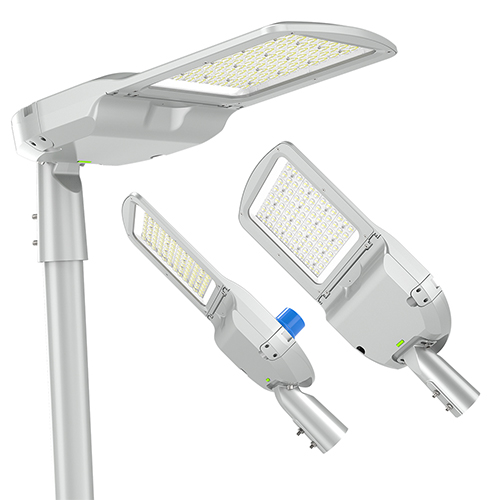

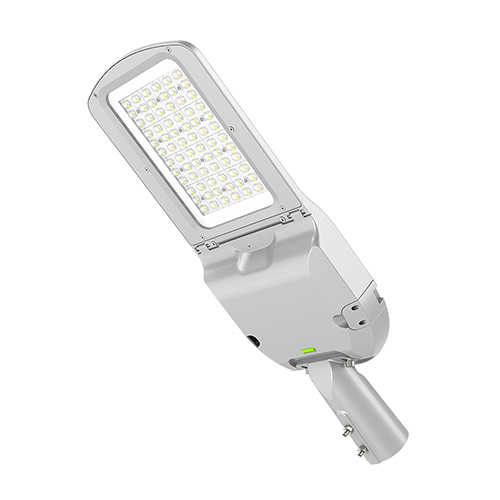

CB ENEC CE Rhos Certification Outdoor IP66 60W 90W 150W 180W 200W 100 Watt LED Street Light

Product description

1).Adopting imported lumileds 3030smd as light source. Energy-saving, environment protecting and long life.
2). 5mm toughened transparent glass , high temperature resisting, easy for lights penetration, transmittance as hight as 92%.
3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.
4).Constant current supply, good stabilize and high security.
5).Energy sawing up to 80%.
6).Good-Looking shape, easy installation

7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..
8).Lampshade material: Die cast aluminum housing, Toughened safety glass, painting coating.
9).The metal part which is between pole and street light is designed as original pole size.

Technical parameter

Datesheet:
Model PL-LD-097-50W PL-LD-097-100W PL-LD-097-150W PL-LD-097-200W PL-LD-097-300W
Power 30-60W 70-120W 150-180W 200-240W 300W
Dimension 568X200X109mm 613X240X109mm 683X260X109mm 693X300X109mm 793X300X109mm
Luminous Flux 140lm/w±5%
LED Source 96PCS Lumileds 3030 144PCS Lumileds 3030 192PCS Lumileds 3030 256PCS Lumileds 3030 384PCS Lumileds 3030
Input Voltage 100-277/305 V AC
Frequency Range 50~60Hz
Total Harmonic Distortion <20%  (Typical : 10%)
Color Temperature 2700K-6500K
Color Rendering Index CRI>70/80
IP and IK Rating IP66&IK09
Beam Angle 60°/90°/120°/T2M/T3M/T4M
Housing Color Silver/Black
Surge protection 4-6KV/10-20KV/20-40KV as customers' rerquirement
Working Life (L80B10) 100000 hours
Control Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI
Storage temperature -40ºC~85ºC 10%~90% H.R
Warranty 5 years
Working Environment -40ºC~+50ºC, 10%~90% RH
Body & Shade Material Die-casting Aluminum housing &Tempered glass& lens
Where Can Use Arterial road; high ways; elevated road; city street; bridge; sidewalks road lighting; the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.
