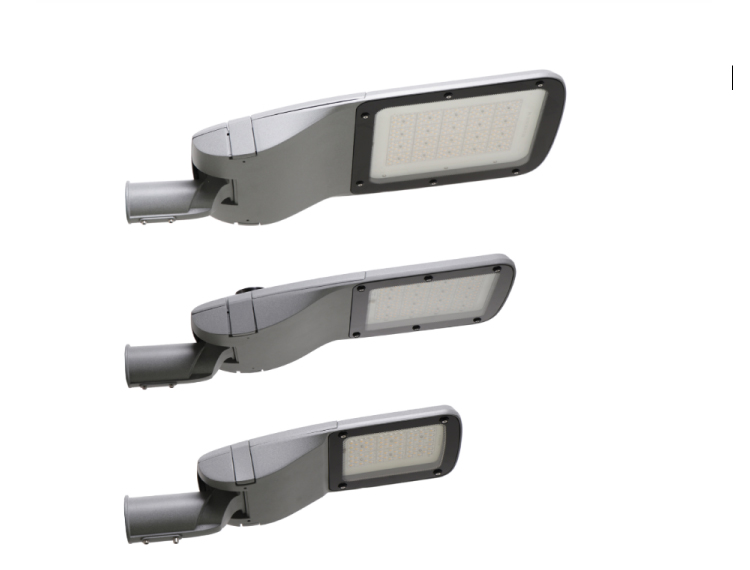

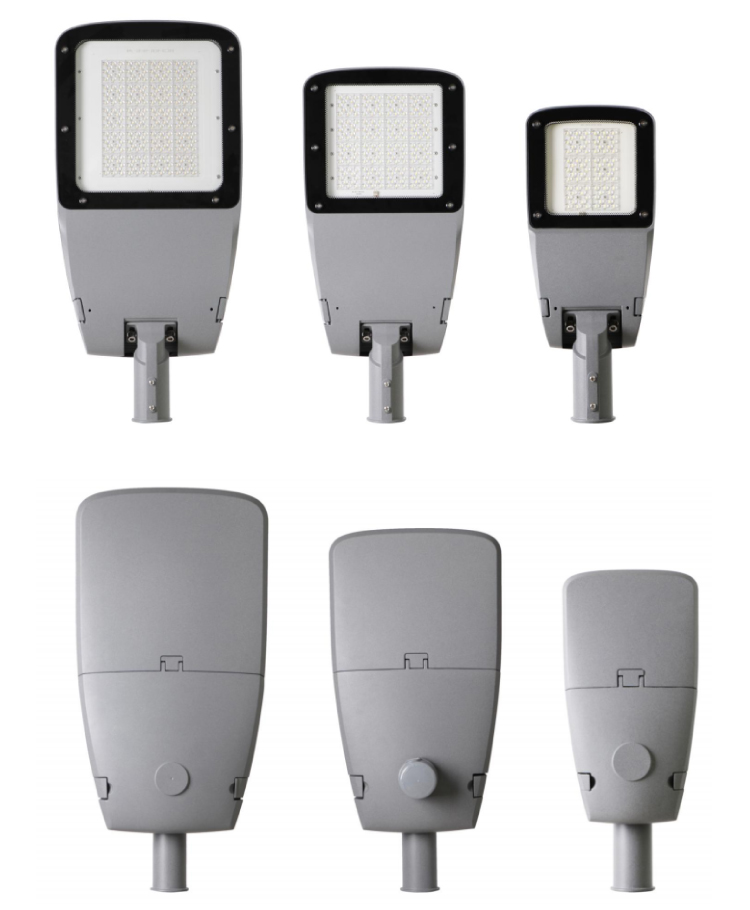

led street lamp
ENEC led street light
outdoor street lamp
led outdoor street lamp
1).Adopting imported lumileds 3030smd as light source. Energy-saving, environment protecting and long life.
2). 5mm toughened transparent glass , high temperature resisting, easy for lights penetration, transmittance as hight as 92%.
3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.
4).Constant current supply, good stabilize and high security.
5).Energy sawing up to 80%.
6).Good-Looking shape, easy installation
7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..
8).Lampshade material: Die cast aluminum housing, Toughened safety glass, painting coating.
9).The metal part which is between pole and street light is designed as original pole size.
Technical parameter
| LED Street light Specifications | |||
| Model | PL-LD-088 | ||
| Input Voltage | 100-277V/305VAC | ||
| Power | 30W 40W 50W 60W 70W 80W | 100W 120W 150W | 200W 240W 300W |
| Size(mm) | 580*240*140 | 740*344*145 | 847*400*150 |
| Net weight(KG) | 4.50 | 9.00 | 11.50 |
| LED chip | Lumileds 3030SMD | ||
| CRI | Ra>70/80 | ||
| Power Factor | >0.95 | ||
| Light efficiency | 140LM/W±5% | ||
| Beam angle | TYPEII,III,IV | ||
| LED driver brand | Inventronics, Meanwell | ||
| Surge protection | 6KV10KV/20KV as customers' rerquirement | ||
| Waterproof and IK | IP66&IK09 | ||
| Housing material | Die-cast aluminum +tempered glass | ||
| Storage temperature | -40ºC~85ºC 10%~90% H.R | ||
| Work temperature | -40ºC~50ºC 20%~90% H.R | ||
| lamppost diameter | 60mm | ||
| Lifespan | (L70B10) 100000 hours | ||
| Control mode | Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI | ||
| Certificates | TUV -CE(EMC.LVD) ROHS SAA CB ENEC IK09 IP66 LM-80 LM-79 TM-21 | ||
| warranty | 5-10 years | ||
